Sequence

Sequence Titan Pump Series

SKU: 2077V115V

$1,953.06
Model:
Voltage:
Quantity:


As large water features and high turnover requirements continue to gain popularity, the cost of energy does not!

Introducing the Sequence Titan series:  Imagine 12,000 GPH for less than 845 watts!  The highest efficiency pumps available for water garden applications – where you need them most, in high flow!  With flow rates between 12,000 and 32,000 GPH and head capabilities between 21 and 180 feet, the Sequence Titan series is sure to cover most large-scale water feature requirements. Sequence Titan.  12000SEQ21 and 18000SEQ45 available in 115V or 230V. 31500SEQ180 available only in 230/460V 3 phase.12000SEQ21 Supplied with 115V or 230V cord set. Made in the USA. Five-year limited warranty.

__________________________________________


Sequence Titan pumps are engineered for high turnover requirements while still minimizing operational costs.  With flow rates between 12,000 and 32,000 GPH and head pressures of between 21 and 180 feet, the Titan series of pumps is sure to cover most any large scale water feature.

___________________

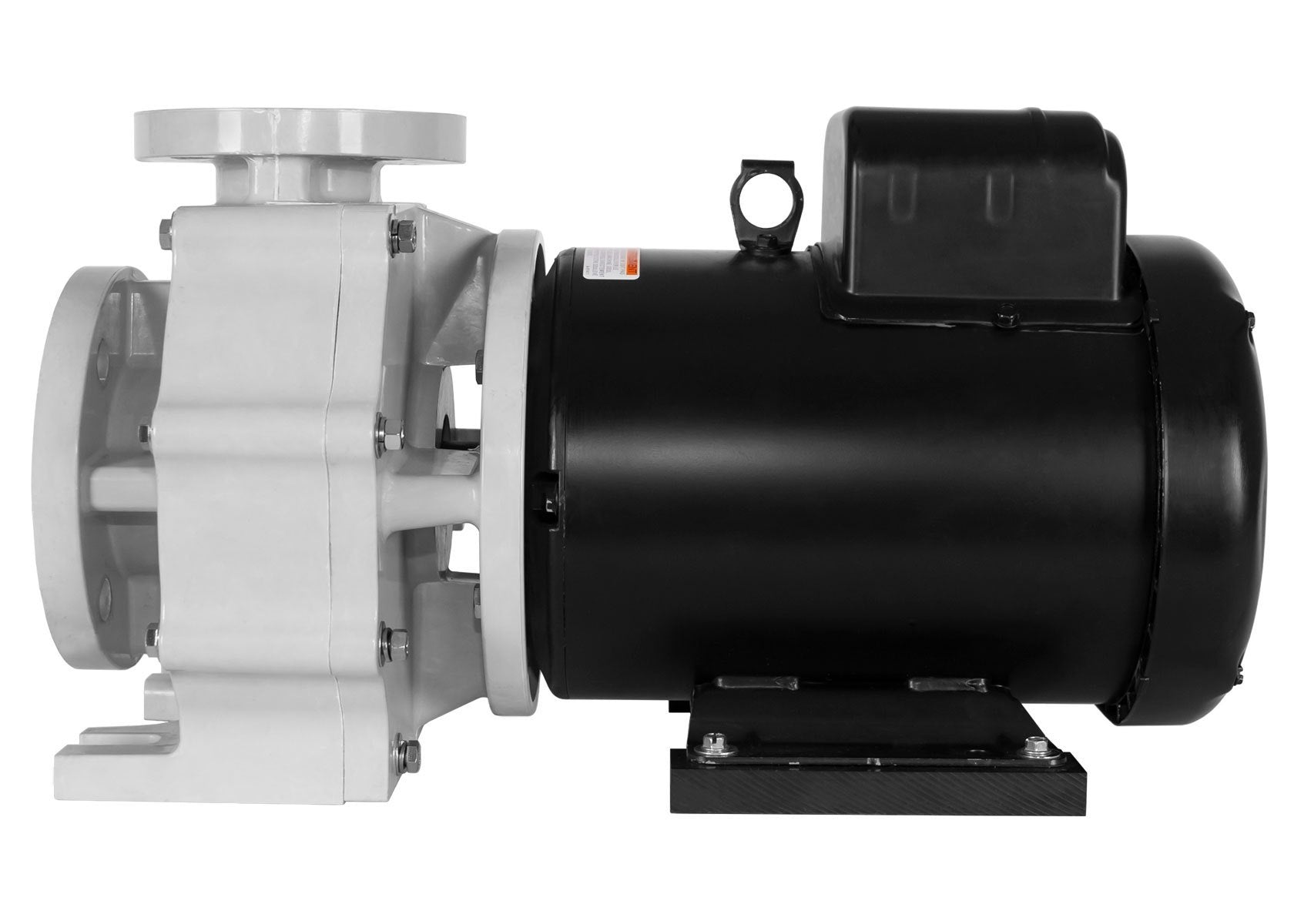

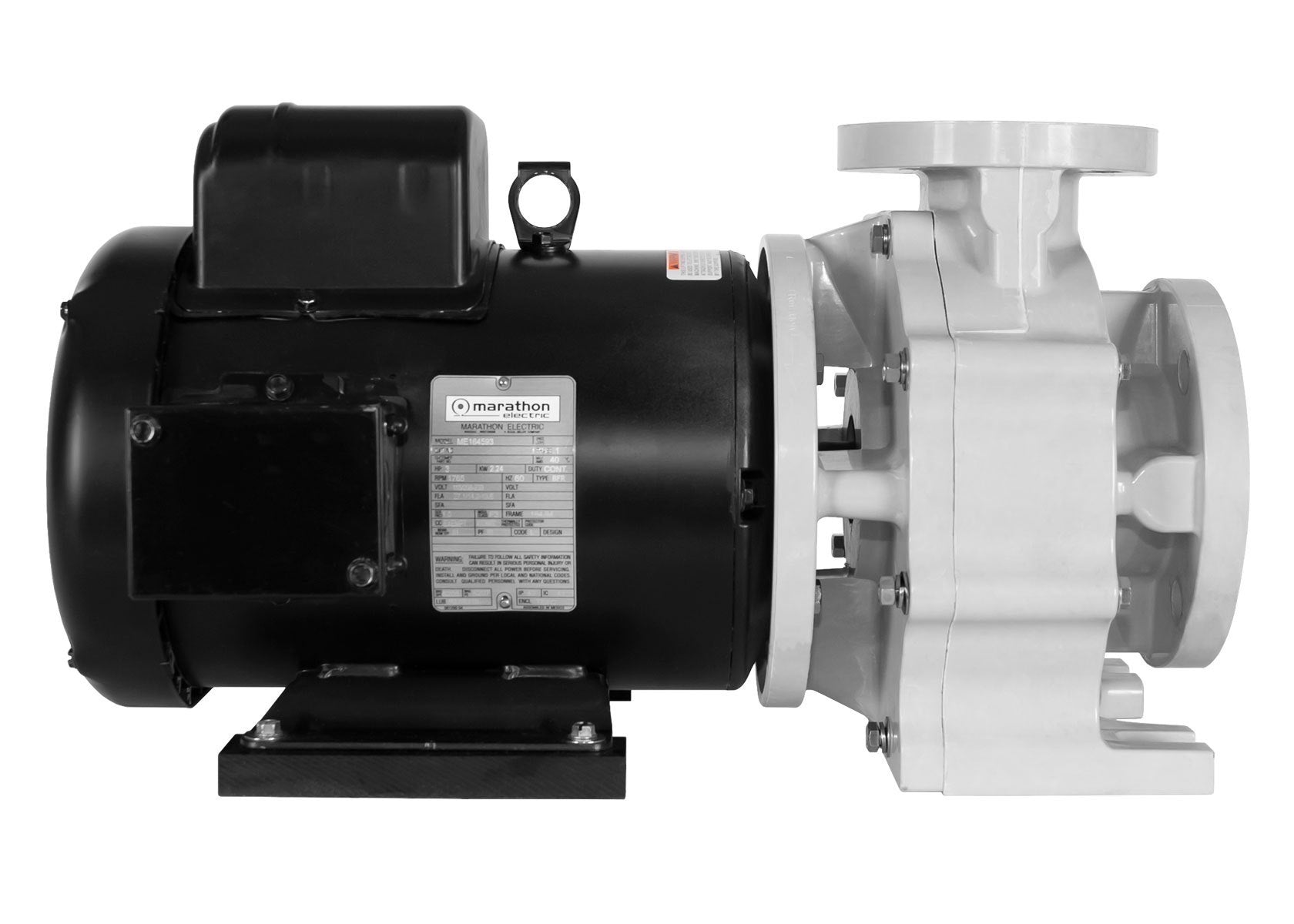

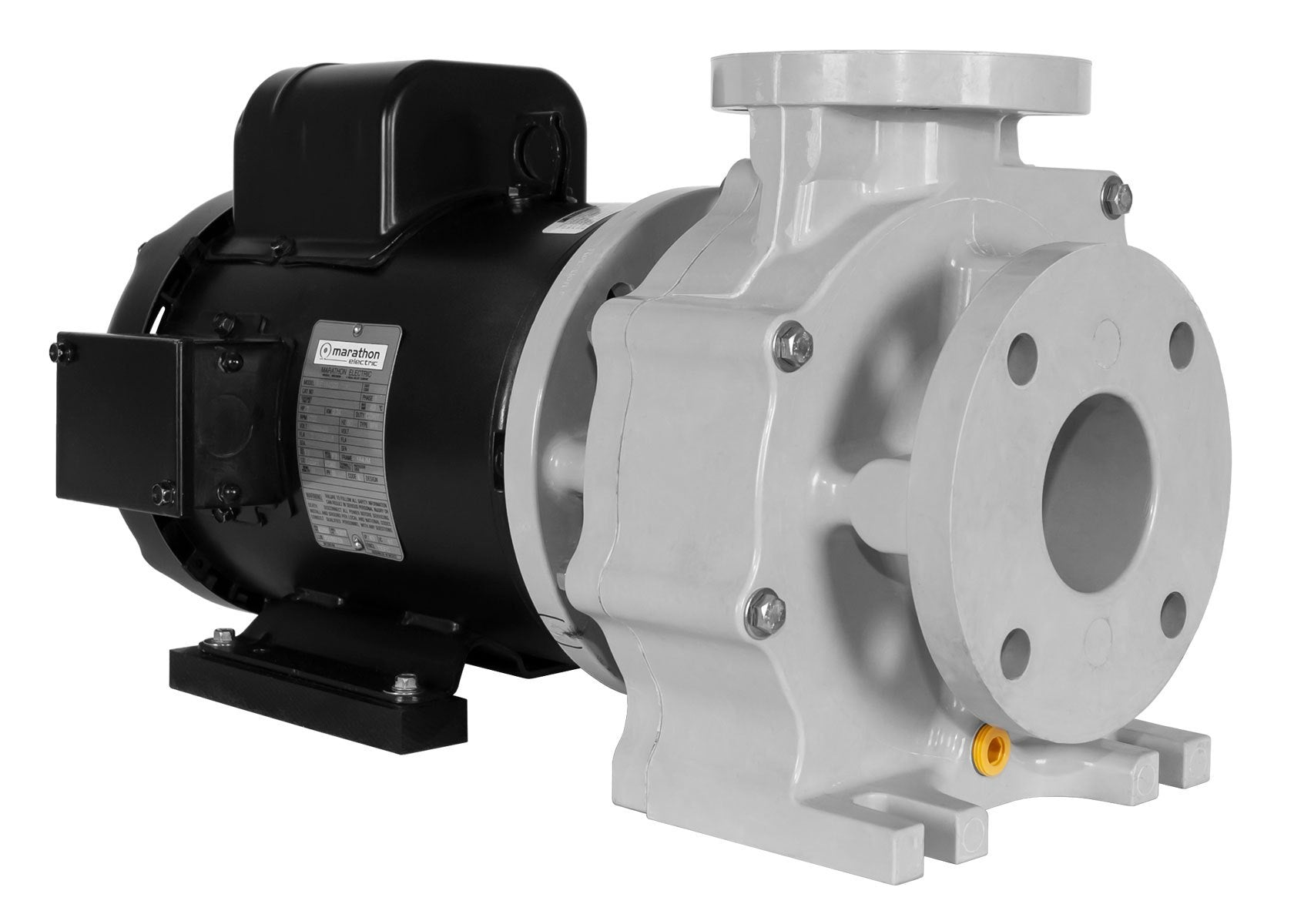

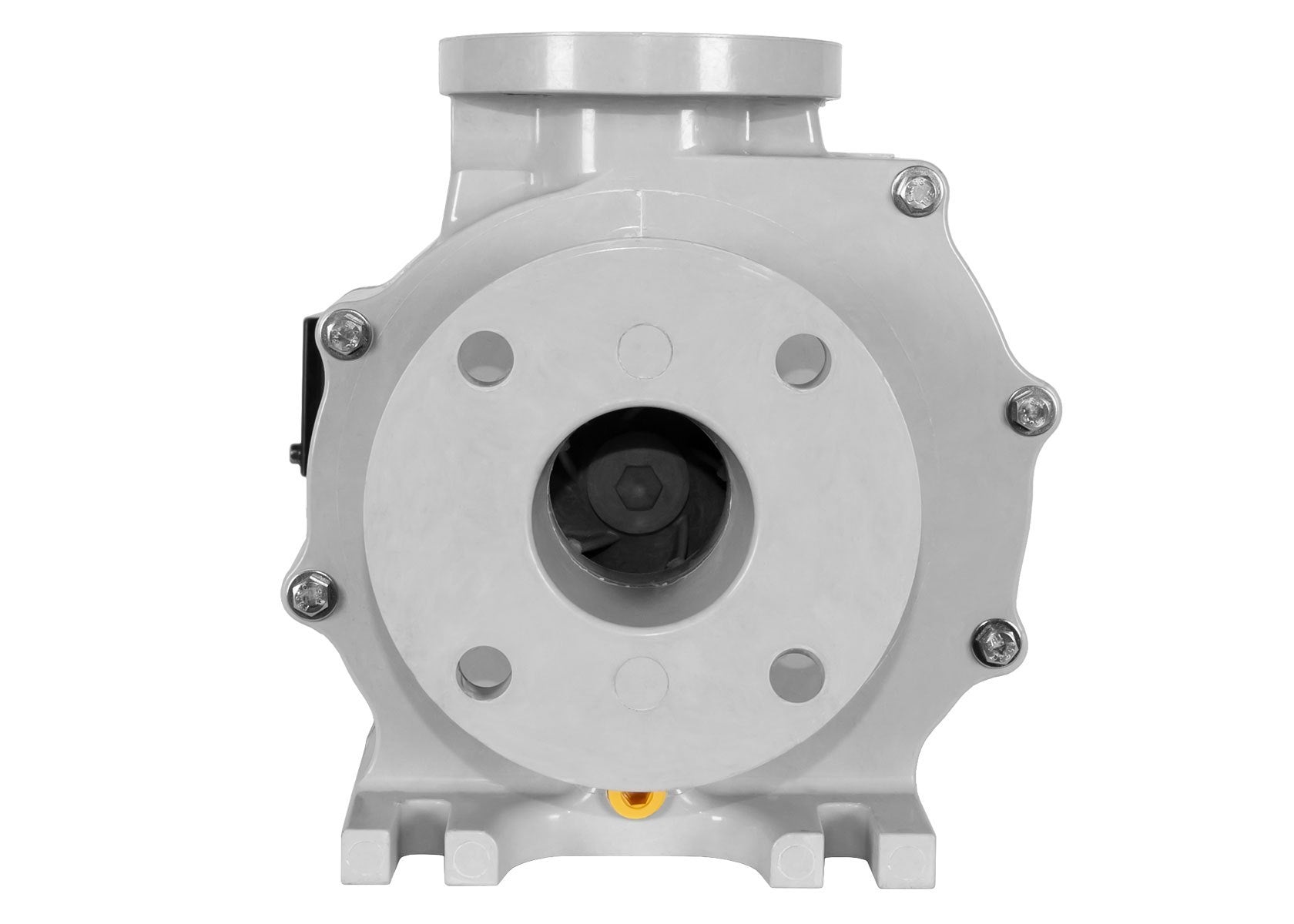

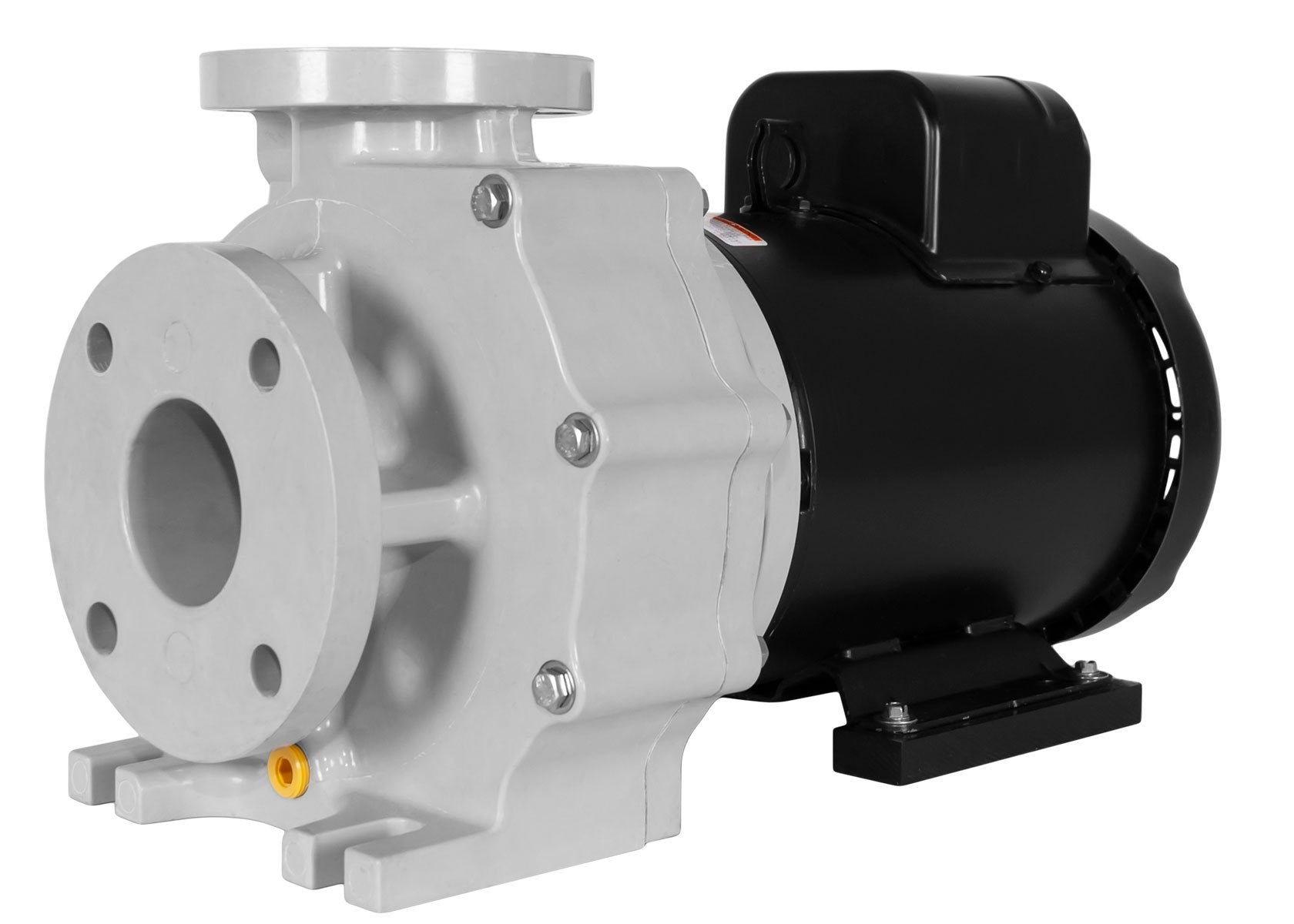

Titan pumps are open centrifugal pumps engineered around totally enclosed fan cooled (TEFC) motors.  Three models are available; 12,000, 18,000, and 31,500 GPH flow rates. All three models are 3” inlet and 2” discharge.  For most applications, the optional flange kit is required (please specify when ordering). Both the 12,000 and 18,000 models are single phase motors, while the 31,500 model is three phase.


Sequence pumps are manufactured to quality standards that meet the most stringent investment requirements. And just what is the most difficult investment standard to meet? The standard set by those who understand the true cost of ownership. The true cost of ownership goes beyond the purchase price. When considering a pump for an aquatic system, longevity, efficiency, operating costs and ease of use must be considered when arriving at the actual cost of the investment. In addition, the purchase of a Sequence pump is an investment in the future. Since we choose to plow profits back into new product development, you can count on the fact that there will always be a new Sequence pump in the future… and one that will be an even better investment! Sequence is the leader in high efficiency, external pumps for water features and koi ponds. From the compact model 750 and workhorse model 1000 to the self-priming, integrated basket strainer and power series models, there is a pump for every application. All units are assembled and pre-tested in our Colorado manufacturing facility.

PRODUCT DOWNLOADS:

TITAN SPECIFICATION SHEET
TITAN INSTALLATION MANUAL

MODEL

HP

Voltage

Watts

Flow

Head

12000SEQ21

3/4

115/230

845

12000

21’

18000SEQ45

3

115/230

2315

18000

45’

31500SEQ180

15

230/640

13000

31500

180’
