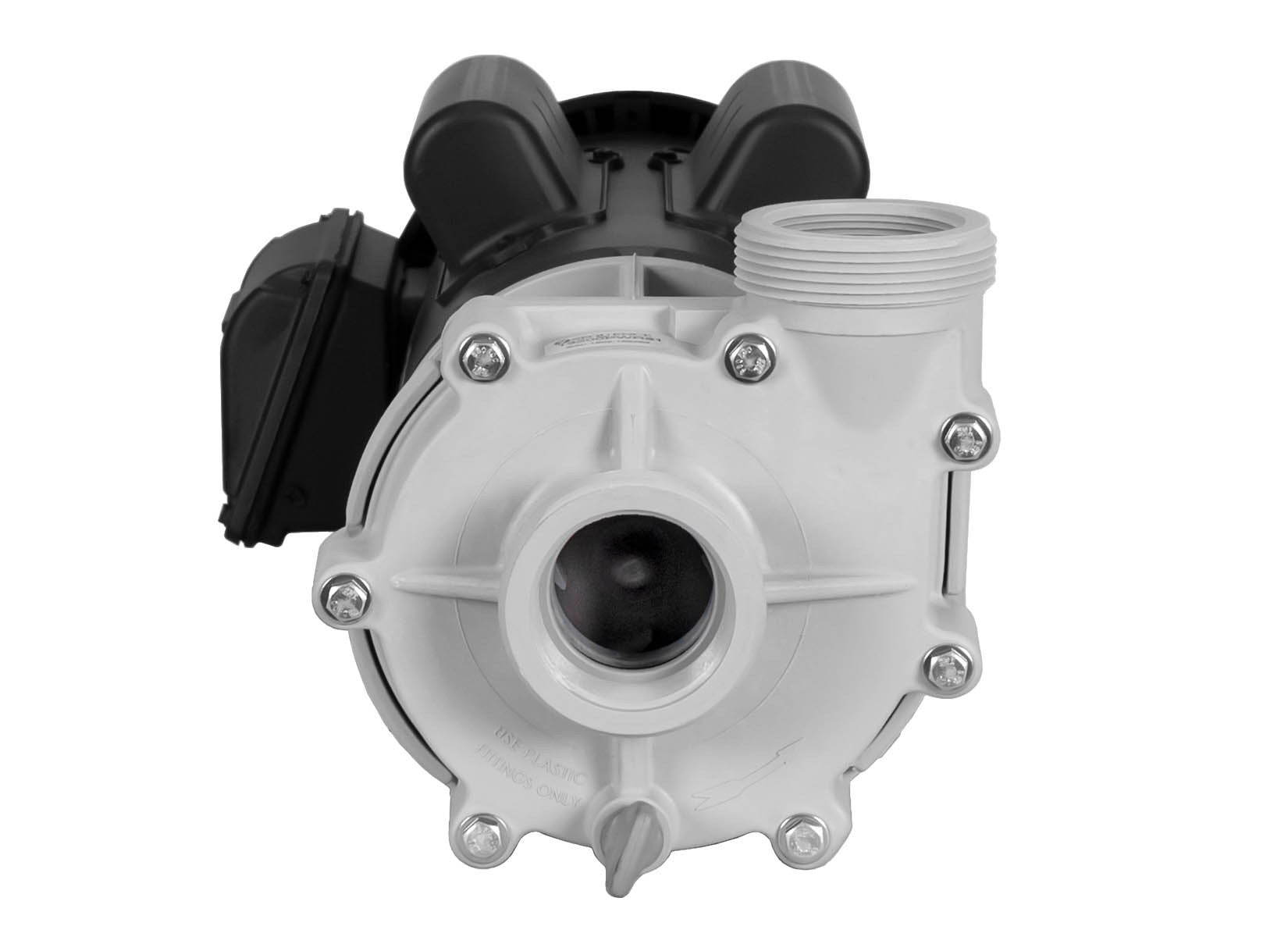

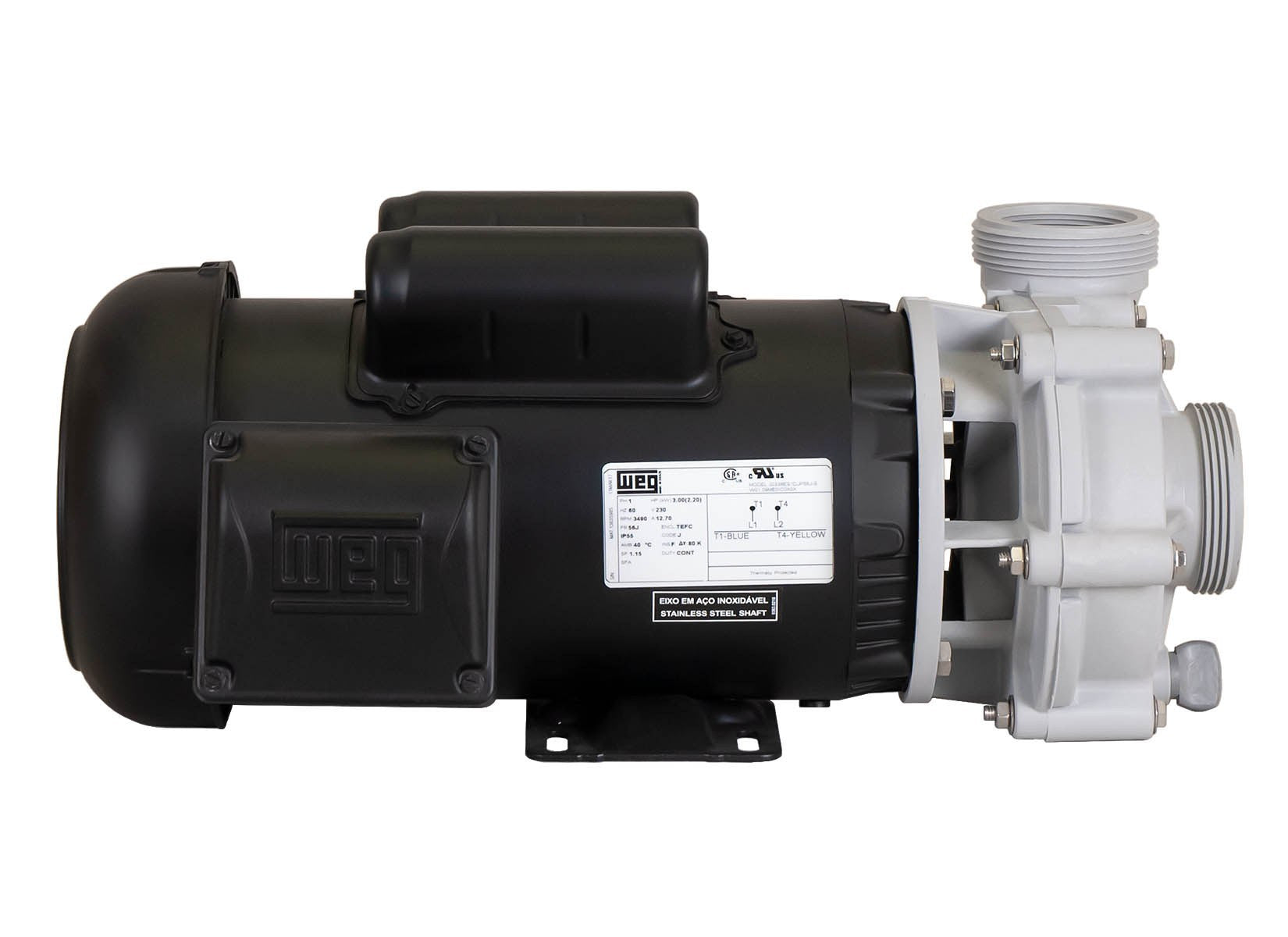

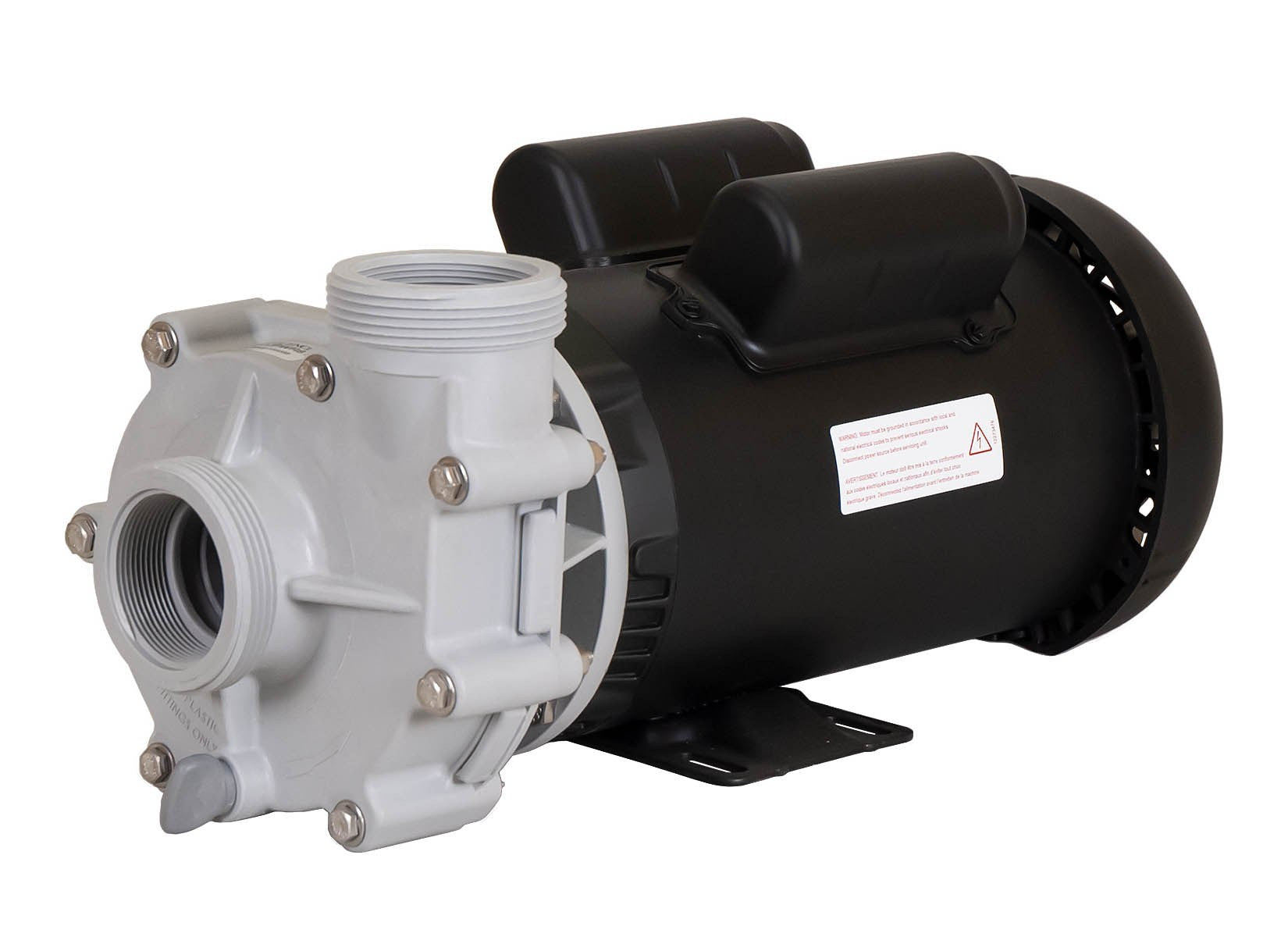

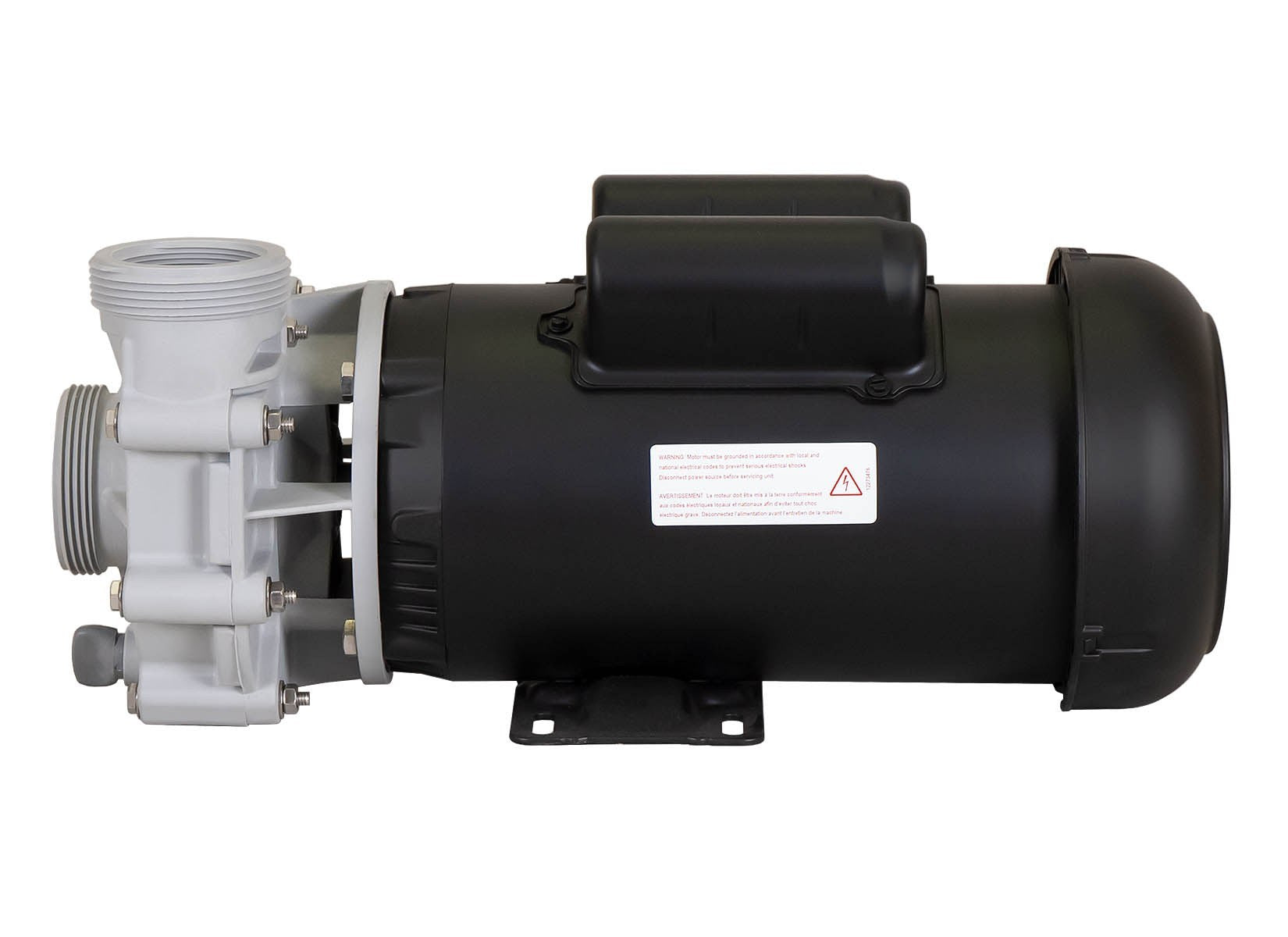

Sequence Power 4000 Pump Series
To support recirculation applications requiring flow rates above 8000 GPH at high head pressures, we’ve taken all the great things from the tried and true Sequence Power 1000 series and expanded them to the 4000 series. Achieving over 13,000 GPH and a max of 80 feet of head, the 4000 broadens the performance range in the Sequence Power series. Inlet and discharge ports are both increased to 2” with an inner diameter connection of FNPT, and outer diameter buttress threads for union adaptors, field installations become less burdened; eliminating reducer-fitting and adapter-assembly costs and reducing friction losses in pump systems. Five-year limited warranty.
Sequence Power 4000 High RPM Pumps are the ideal solution for use in the design of high efficiency koi ponds, water gardens, and commercial aquacultural applications where higher flow rates and/or pressures are required over the low pressure Series 4000 line of pumps. The 4000 models are the latest design from Sequence. Manufactured in the USA, the Power 4000 line of pumps have been and continue to be one of the more popular choices with our customers.
Sequence Power 4000 High RPM pumps are open centrifugal pumps engineered around high RPM (3450) motors of varying horsepower ratings. Wet ends are specifically engineered to provide flow relative to pressure and are molded from glass-filled polypropylene for long life and smooth operation. 2” unionized intake and discharge ports. Sequence Power 4000 pumps are factory configured 230v operation.
Sequence Power 1000 High RPM pumps are open centrifugal pumps engineered around high RPM (3450) motors of varying horsepower ratings. Wet ends are specifically engineered to provide flow relative to pressure and are molded from glass-filled polypropylene for long life and smooth operation. 1-½” intake and discharge ports. Sequence Power 1000 pumps are factory configured 230v operation.
Sequence pumps are manufactured to quality standards that meet the most stringent investment requirements. And just what is the most difficult investment standard to meet? The standard set by those who understand the true cost of ownership. The true cost of ownership goes beyond the purchase price. When considering a pump for an aquatic system, longevity, efficiency, operating costs and ease of use must be considered when arriving at the actual cost of the investment. In addition, the purchase of a Sequence pump is an investment in the future. Since we choose to plow profits back into new product development, you can count on the fact that there will always be a new Sequence pump in the future… and one that will be an even better investment! Sequence is the leader in high efficiency, external pumps for water features and koi ponds. From the compact model 750 and workhorse model 1000 to the self-priming, integrated basket strainer and power series models, there is a pump for every application. All units are assembled and pre-tested in our Colorado manufacturing facility.
20 × 12 × 12 in
|POWER 4000 SPECIFICATION SHEETS
|POWER 4000 INSTALLATION MANUAL
