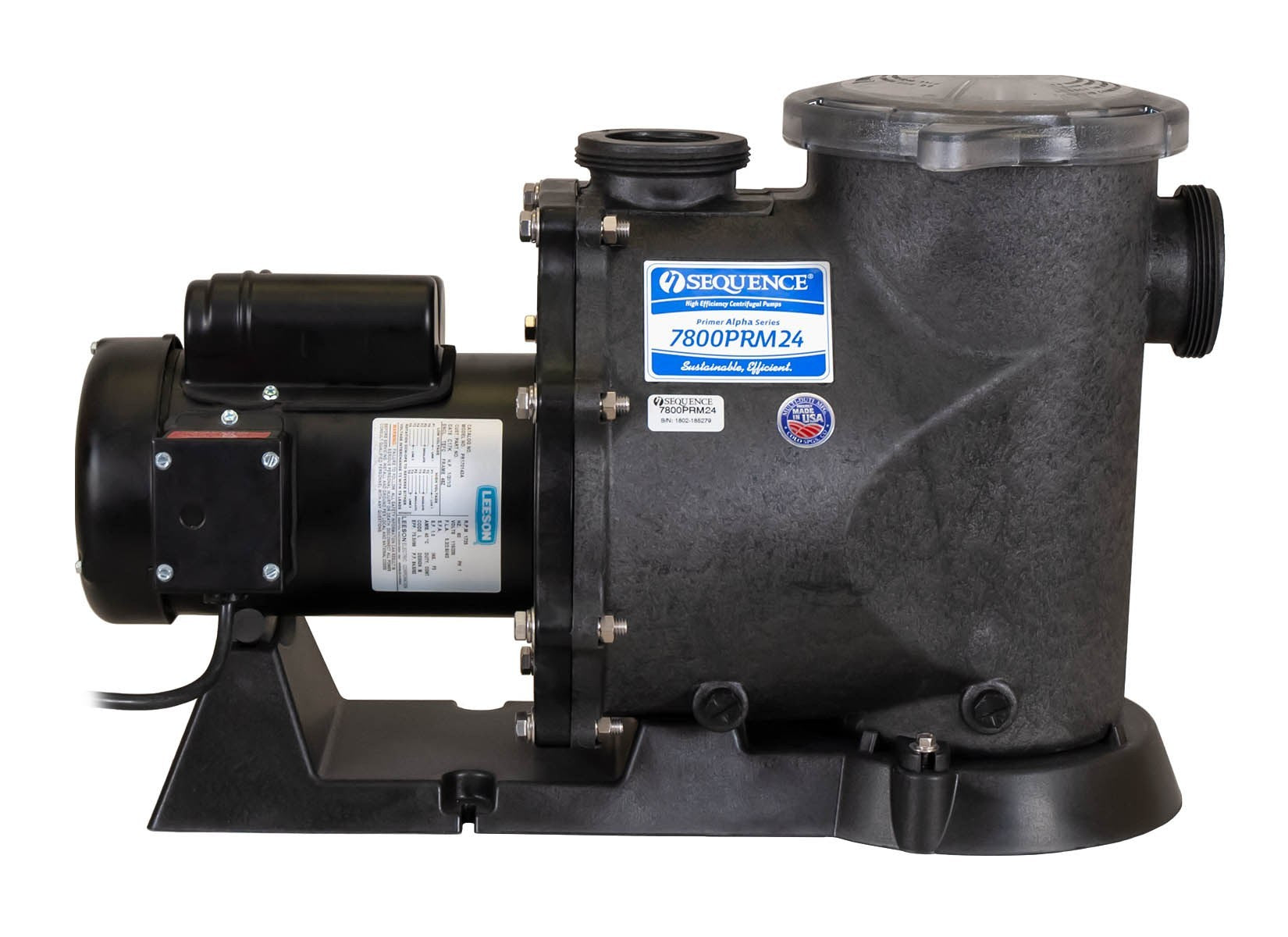

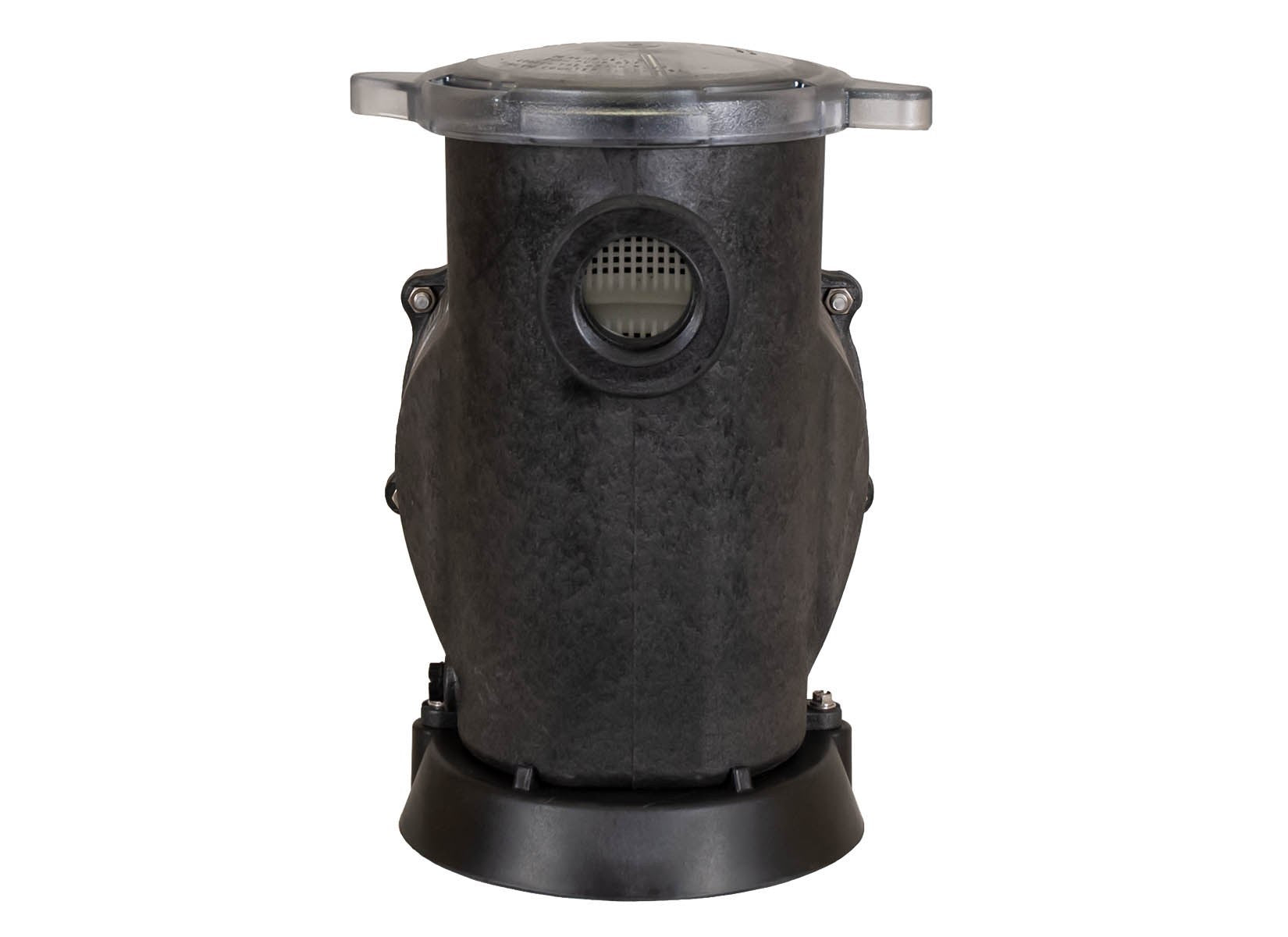

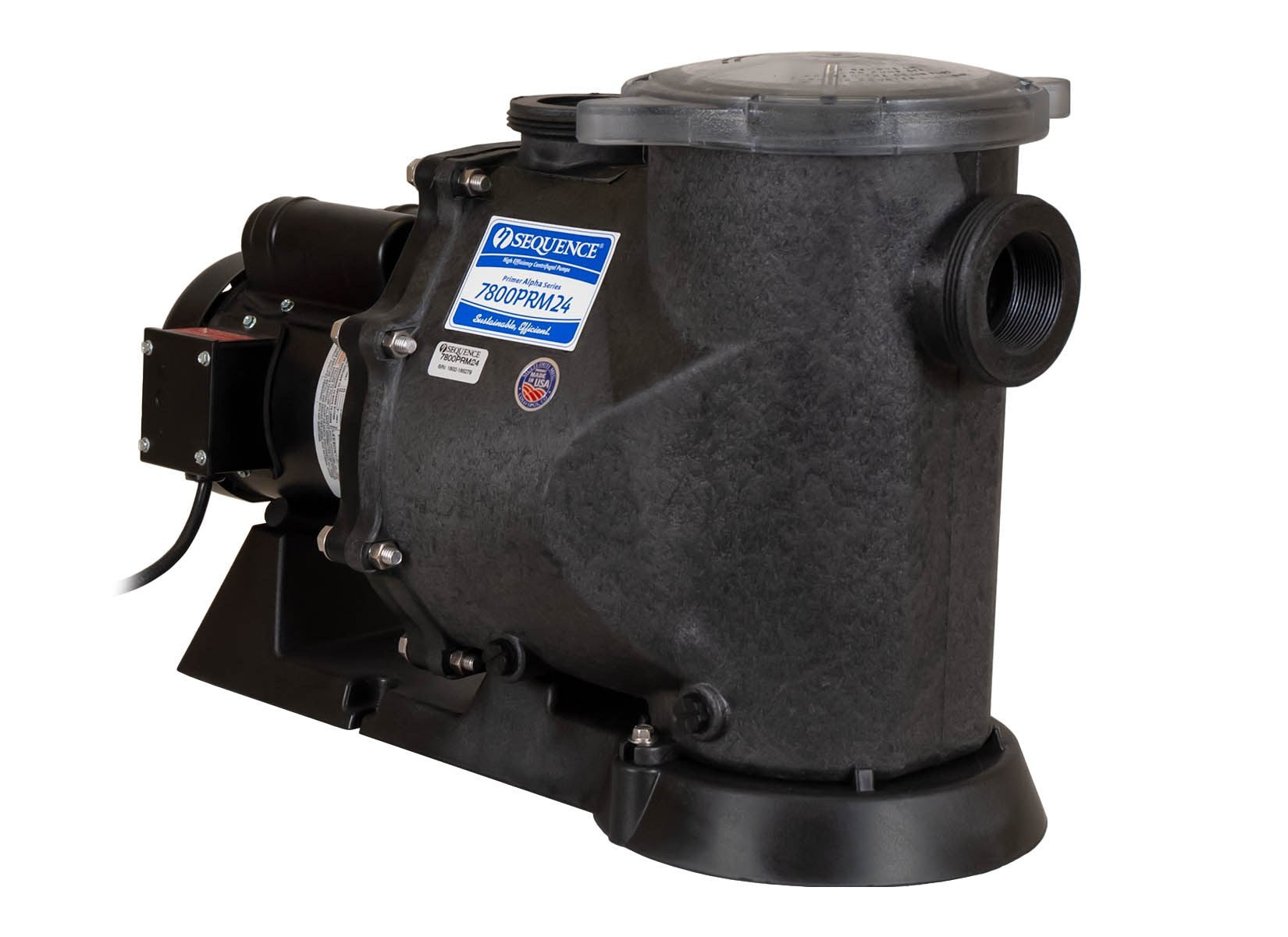

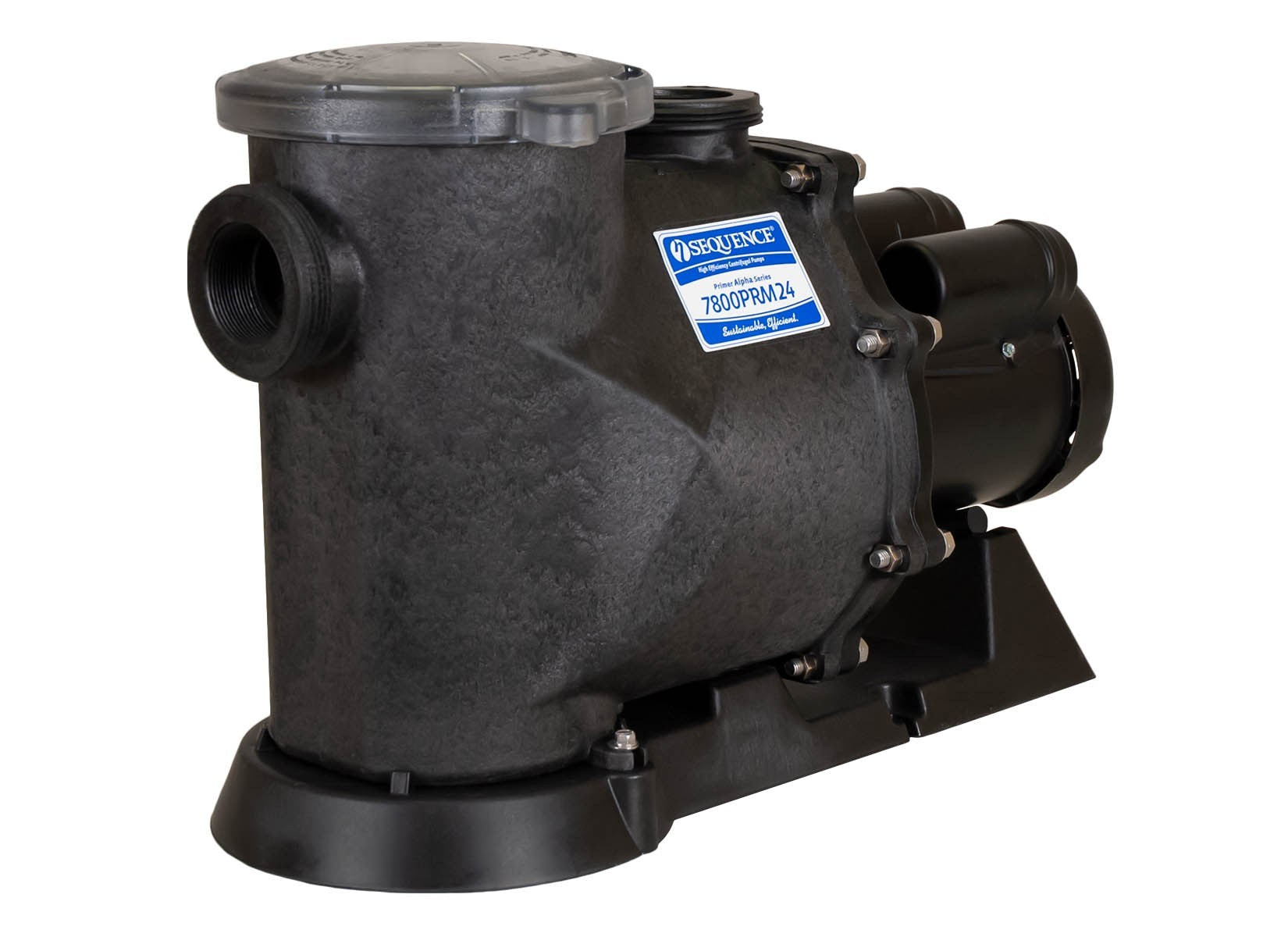

Sequence Alpha Primer

The Primer series integrates a basket-type pre-filter and self-priming capabilities into one efficient package for trouble-free operation. The motor is totally enclosed, fan-cooled for durability 115V or 230V with an 8-foot cord set. Five-year limited warranty.

Special features include an internal diffuser to allow for the displacement of trapped air. This type of pump will continue to move water even when there is some air in the line.

The integrated strainer basket on all primer units helps protect the internal rotating parts of the pump from damage due to external debris being pulled into the pump. The simple cover allows for quick cleaning.

The Alpha Primer line of pumps are powered by Leeson totally enclosed fan cooled (TEFC) motors, and are extremely reliable and energy efficient. An ideal choice for koi ponds, water gardens, and commercial applications where self-priming capabilities and energy efficiency are of concern.

_________________________

Sequence Alpha Primer pumps are engineered around low RPM (1750) motors of fractional horsepower.  All models within the line are 2” FNPT suction and discharge.  Units are pre-wired with an 8’ cord and molded 115v plug, or can be ordered for 230v service (please specify when ordering).  The wet end is molded of high strength, glass filled polypropylene for quiet and efficient operation. Dry run resistant mechanical seals and stainless steel hardware is standard.

___________________________________________

Sequence pumps are manufactured to quality standards that meet the most stringent investment requirements. And just what is the most difficult investment standard to meet? The standard set by those who understand the true cost of ownership. The true cost of ownership goes beyond the purchase price. When considering a pump for an aquatic system, longevity, efficiency, operating costs and ease of use must be considered when arriving at the actual cost of the investment. In addition, the purchase of a Sequence pump is an investment in the future. Since we choose to plow profits back into new product development, you can count on the fact that there will always be a new Sequence pump in the future… and one that will be an even better investment! Sequence is the leader in high efficiency, external pumps for water features and koi ponds. From the compact model 750 and workhorse model 1000 to the self-priming, integrated basket strainer and power series models, there is a pump for every application. All units are assembled and pre-tested in our Colorado manufacturing facility.

Additional information

PRODUCT DOWNLOADS:

	6800PRM19 & 7800PRM24 SPECIFICATION SHEET
	PRIMER ALPHA INSTALLATION MANUAL
