Every rebuild and service part for Matala Hakko linear air pumps
Diaphragms and magnets (the two wear items), washable filter pads, gaskets, vibration mounts, power cords, the HK-100/120 safety switch and the wall stands Matala recommends. Part descriptions name the pump models they fit; the “part no.” matches the exploded diagram in the Hakko manual.
Image coming soon
Mystic Koi’s take
Rebuild order: filter pad every season, diaphragm kit every 2–3 years, magnet only if the pump has been run flooded or the diaphragm tore and let the arm strike the housing. Note the HK-150L, 200L and 250L take two magnets per set.
Wear parts by pump
| Pump | Diaphragm | Magnet | Filter pad |
|---|---|---|---|
| HK-25L / 25LP | HK-D25 | HK-M25 | HK-F25 / HK-F25LP/40LP |
| HK-40L / 40LP | HK-D40 | HK-M40 | HK-F40/60/80 / HK-F25LP/40LP |
| HK-60L | HK-D60/80 | HK-M60/80 | HK-F40/60/80 |
| HK-80LH | HK-D60/80 | HK-M80H | HK-F40/60/80 |
| HK-100L | HK-D100/120 | HK-M100/150 | HK-F100/120 |
| HK-120LH | HK-D100/120 | HK-M120/120H/200 | HK-F100/120 |
| HK-150L | HK-D150/200/250 | HK-M100/150 (×2) | HK-F150/200/250 |
| HK-200L | HK-D150/200/250 | HK-M120/120H/200 (×2) | HK-F150/200/250 |
| HK-250L | HK-D150/200/250 | HK-M250 (×2) | HK-F150/200/250 |
Full parts list
| Part # | Description |
|---|---|

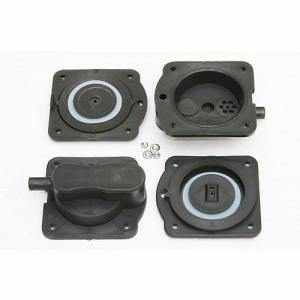

| HK-D25 | HK-D 25 Diaphragm |
| HK-D40 | HK-D 40 Diaphragm |
| HK-D60/80 | HK-D 60/80 Diaphragm |
| HK-D100/120 | HK-D 100/120 Diaphragm |
| HK-D150/200/250 | HK-D 150/200/250 Diaphragm |

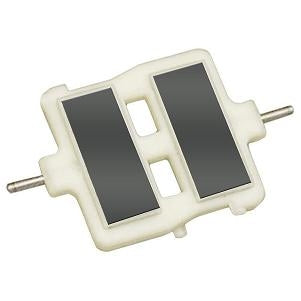

| HK-M25 | HK-M 25 Magnet |
| HK-M40 | HK-M 40 Magnet |
| HK-M60/80 | HK-M 60/80 Magnet |
| HK-M80H | HK-M 80H Magnet |
| HK-M100/150 | HK-M 100/150 Magnet (HK-150L need 2pc per set) |
| HK-M120/120H/200 | HK-M 120/120H/200 Magnet (HK-200Lneed 2pc per set) |
| HK-M250 | HK-M 250 Magnet (HK-250L need 2pc per set) |
| HK-F25 | Small Disc Filter Pads for inlet to HK-25L (3pcs/set) |
| AF-1/4 HK25L | 3" Air Filter 1/2" thread w/ L Tube for HK25L (optional filter) |
| HK-F40/60/80 | Filter Pad for HK-40L & 60L & 80L (part no. 4) |
| HK-F100/120 | Filter Pad for HK-100L & 120L (part no. 3) |
| HK-F150/200/250 | Filter Pad for HK-150L & 200L & 250L (part no. 3) |
| HK-F25LP/40LP | Filter Pad for HK-25LP & 40LP (part no. 3) |
| HK-FP40/60/80 | Filter Cover Packing for HK-40L & 60L & 80L (part no. 3) |
| HK-VM40/60/80 | Vibration Mount, 4pc/set for HK-40L & 60L & 80L (part no. 17) |
| HK-VM100/120 | Vibration Mount, 4pc/set for HK-100L & 120L (part no. 16) |
| HK-VM150/200/250 | Vibration Mount, 8pc/set for HK-150L ~250L (part no. 17) |
| HK-GK40/60/80 | Lower Pump Cover Gasket for HK-40L & 60L & 80L (part no. 19) |
| HK-GK100/120 | Lower Pump Cover Gasket for HK-100L & 120L (part no. 18) |
| HK-TC18 | Outer L-Tube 1pc + Clamp for HK-40L & 60L & 80L |
| HK-TC26 | Outer Hose for HK-100L & 120L |
| HK-SS100/120 | Safety Switch for HK-100L & 120L (part no.23) |
| HK-AP25 | Air Pipe (include 1pc of transparent o-ring ) for HK-25L (part no. 19) |
| HK-PC25/25LP | Power Cord for HK-25L & 25LP |
| HK-PC40/40LP/60/80 | Power Cord for HK-40L & 40LP & 60L & 80L |
| HK-PC100/120 | Power Cord for HK-100L & 120L |
| HK-PC150/200/250 | Power Cord for HK-150L & 200L & 250L |
| HK-GK25LP | Lower Pump Cover Gasket + Gasket (part no. 16+17) |
| HK-GK40LP | Lower Pump Cover Gasket + Gasket (part no. 21+22) |
| HK-LC40LP | Lower Pump Cover + Rubber Feet*4set (part no. 20+21) |
| HK-IT40/60/80 | Innner L-Tube*2pcs + Hose Clamp*2pcs (part no.8+9) |
| HK-S40/80 | Stand for HK40/60/80 |
| HK-S100/120 | Stand for HK100/120 |
Pairs well with
Questions we get about the Hakko parts
Why mount the pump above water?
If power fails, water can siphon back up the airline into a pump that sits below water level and flood it — which voids the warranty. Use the stand or a wall bracket at least 2" above the pond surface.
Diaphragm or magnet?
Low output with normal sound = diaphragm. Loud knocking or no output = check the magnet/arm.
