GC Tek NishikigoiUV Vertical Amalgam UV — 316 Stainless

GC Tek NishikigoiUV Vertical Amalgam UV — 316 Stainless

$834.95

Model:

V80 — 80 W · up to 4,800 gph · all-weather ballast VB80 — 80 W · up to 4,800 gph · detachable SS control box V160 — 2 × 80 W · up to 9,600 gph V240 — 3 × 80 W · up to 14,400 gph · 3" V320 — 4 × 80 W · up to 19,200 gph · 3"

Variant

$834.95

GC Tek NishikigoiUV · vertical · marine-grade 316 stainless · amalgam

The same UV, standing up

Everything the horizontal NishikigoiUV offers — 316 stainless vessel, high-output amalgam lamps, individual ballasts, hour meter and lamp indicators, 13,000-hour lamps — in a vertical footprint for tight filter pits and pads. The V80 carries an integrated all-weather ballast; the VB80, V160, V240 and V320 come with a detachable 316 stainless weather-proof control box. Sch 80 unions on every unit. Lifetime warranty on the vessel.

Authorized GC Tek dealerGenuine product, factory warranty, distributor-direct.

Warranty & support handled hereWe set up, troubleshoot and handle warranty claims in-house.

Ships from Southern CaliforniaIn-stock parts & media ship from Upland, CA. Local pickup available.

New for 2026. GC Tek's Nishikigoi line — designed in Chandler, Oklahoma, built to the standard koi keepers expect from the AlphaONE. First shipments started June 2026; better model-by-model photos are on the way from GC Tek.

Vertical footprint

Stands beside the filter instead of lying across the pad.

Detachable SS control box

Mount the box where it's dry and easy to read (VB80 and up).

Individual ballasts

One electronic ballast per lamp for maximum ballast life.

Lifetime vessel warranty

316 stainless — except freezing, or being run over by a bus.

Model	Lamps	Max flow	Guide pond size	Unions	Control	Price

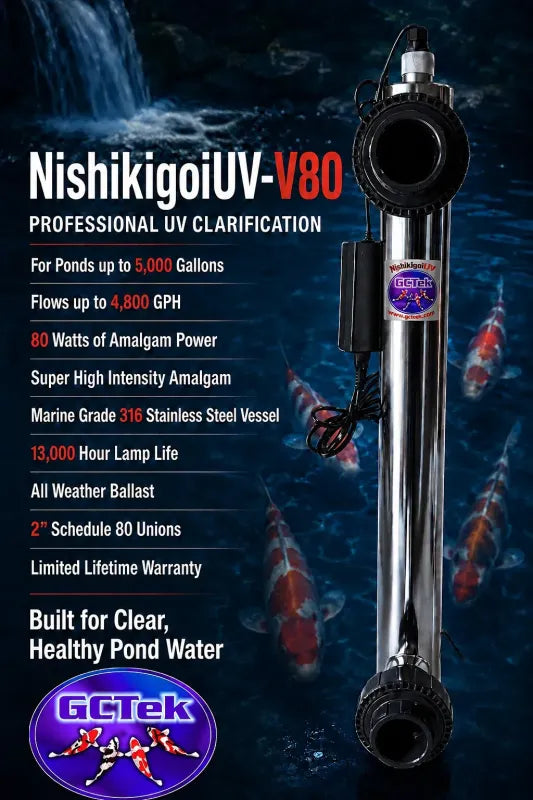

V80	1 × 80 W	4,800 gph	~5,000 gal	2"	integrated all-weather ballast	$834.95

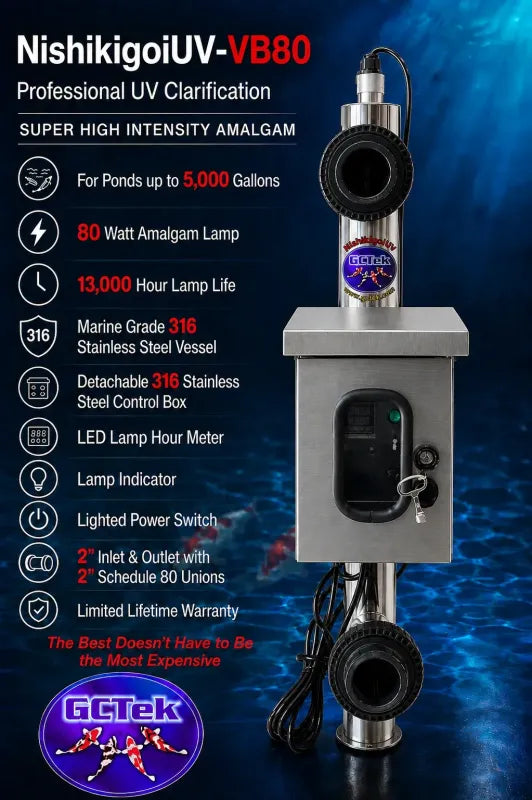

VB80	1 × 80 W	4,800 gph	~5,000 gal	2"	detachable 316 SS control box	$1,679.95

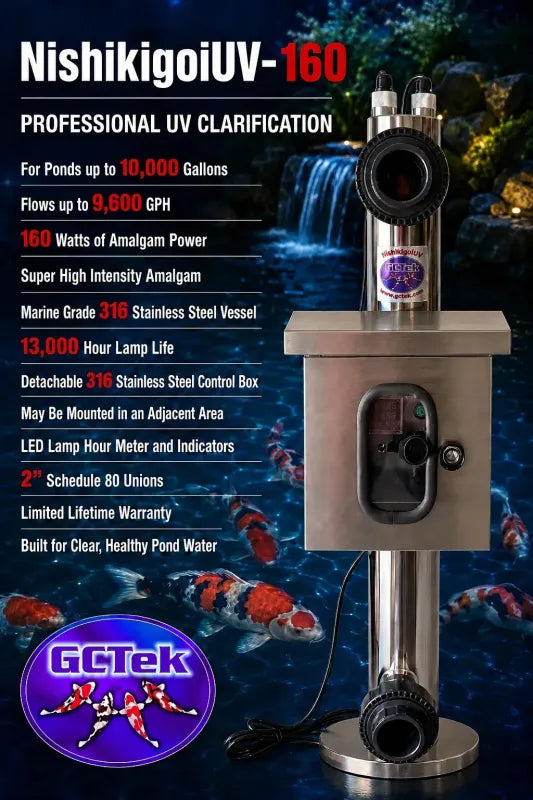

V160	2 × 80 W	9,600 gph	~10,000 gal	2"	detachable 316 SS control box	$2,639.95

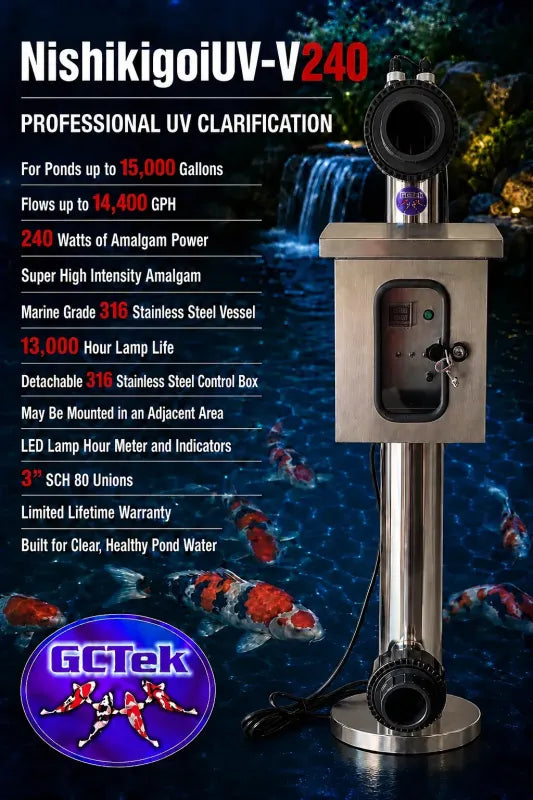

V240	3 × 80 W	14,400 gph	~15,000 gal	3"	detachable 316 SS control box	$3,239.95

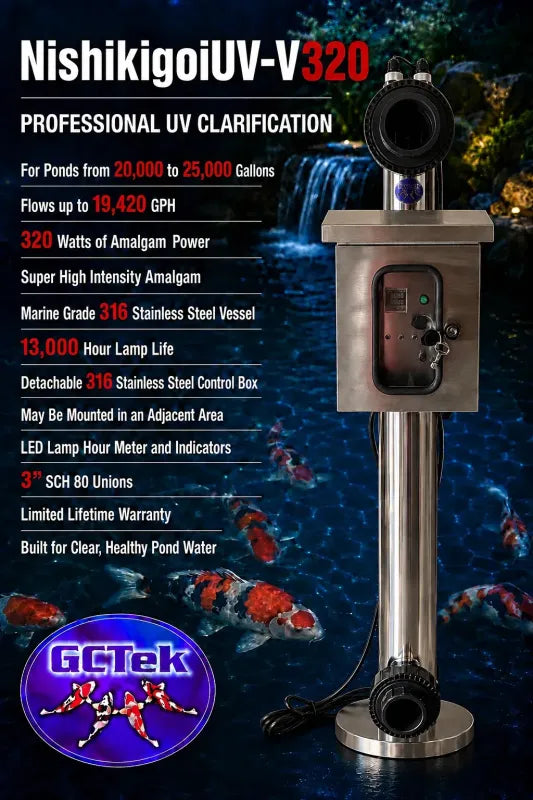

V320	4 × 80 W	19,200 gph	~22,500 gal	3"	detachable 316 SS control box	$3,479.95

V400 (24,000 gph) and V480 (28,800 gph) vertical units are coming later in 2026 — call us if you need one.

Horizontal NishikigoiUV All GC Tek

GC Tek
Grand Champion Technologies · Chandler, Oklahoma · pond filtration built in the USA

Mystic Koi & Water Gardens — authorized GC Tek dealer, Upland, California.
Questions on sizing? Call the shop and talk to someone who runs these filters.
