GC Tek NishikigoiUV Horizontal Amalgam UV — 316 Stainless

GC Tek

GC Tek NishikigoiUV Horizontal Amalgam UV — 316 Stainless

$749.95

Model:

H80 — 1 × 80 W · up to 4,800 gph H110 — 2 × 55 W · up to 6,600 gph HD160 — 160 W · up to 9,600 gph H165 — 3 × 55 W · up to 9,900 gph H220 — 4 × 55 W · up to 13,200 gph · 3" H400 — 5 × 80 W · up to 24,000 gph · 3" H480 — 6 × 80 W · up to 28,800 gph · 3"

Variant

$749.95

GC Tek NishikigoiUV · horizontal · marine-grade 316 stainless · very-high-output amalgam

Designed to be the last UV you'll ever need

Marine-grade 316 stainless (not 304) vessel, 316 stainless electrical control box, one to six high-output amalgam lamps, and an individual electronic ballast for every lamp — so if one goes down the rest keep the pond clear. Built-in lamp indicator lights and a resettable LED hour meter tell you exactly where your 13,000-hour lamps stand (9,000 is the industry norm). Priced against the plastic units it replaces, with a lifetime warranty on the vessel.

Authorized GC Tek dealerGenuine product, factory warranty, distributor-direct.

Warranty & support handled hereWe set up, troubleshoot and handle warranty claims in-house.

Ships from Southern CaliforniaIn-stock parts & media ship from Upland, CA. Local pickup available.

New for 2026. GC Tek's Nishikigoi line — designed in Chandler, Oklahoma, built to the standard koi keepers expect from the AlphaONE. First shipments started June 2026; better model-by-model photos are on the way from GC Tek.

316 marine-grade SS

Vessel and control box both 316 stainless — the good kind. Lifetime vessel warranty (rubber parts excepted).

One ballast per lamp

Longer ballast life, and a single failure never darkens the whole unit.

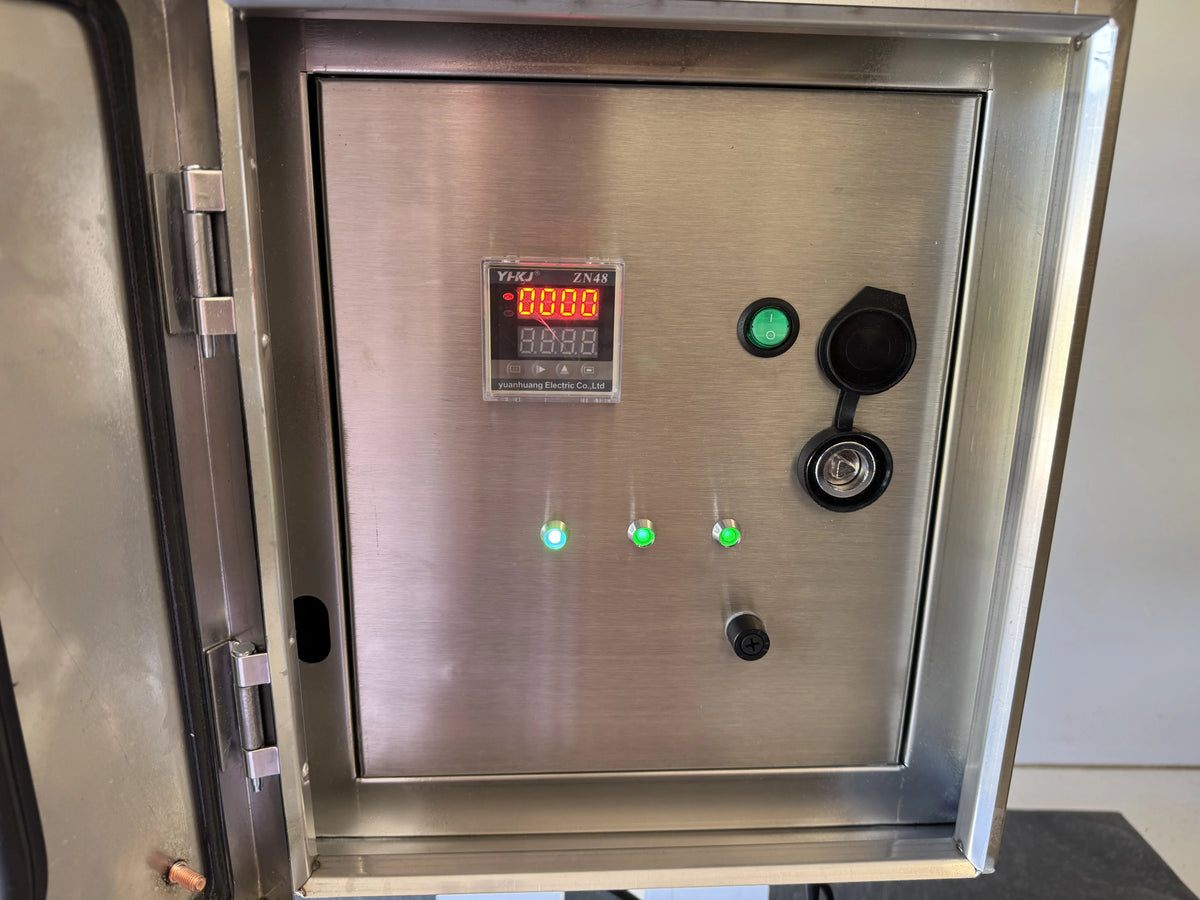

Hour meter + indicators

Resettable LED hour meter plus a light per lamp so you can see every lamp is firing.

13,000-hour amalgam lamps

2–5× the output of standard UV lamps, with quartz sleeves and lamps accessible from both ends. Sch 80 unions and a big-handle drain included.

Choose your model

Model	Lamps	Max flow	Guide pond size	Unions	Price

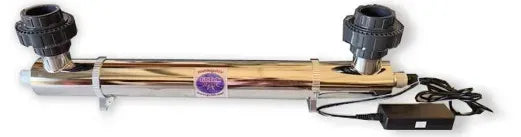

H80	1 × 80 W	4,800 gph	~5,000 gal	2"	$749.95

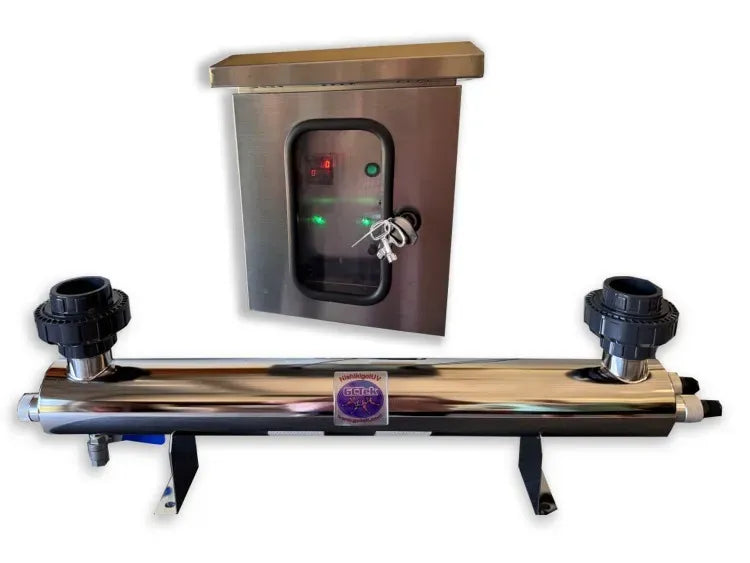

H110	2 × 55 W	6,600 gph	~6,600 gal	2"	$1,280.00

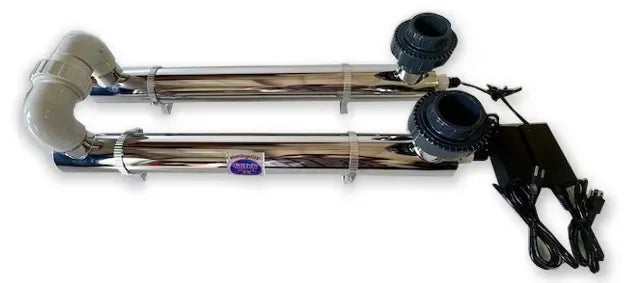

HD160	2 × 80 W	9,600 gph	~7,500 gal	2"	$1,499.95

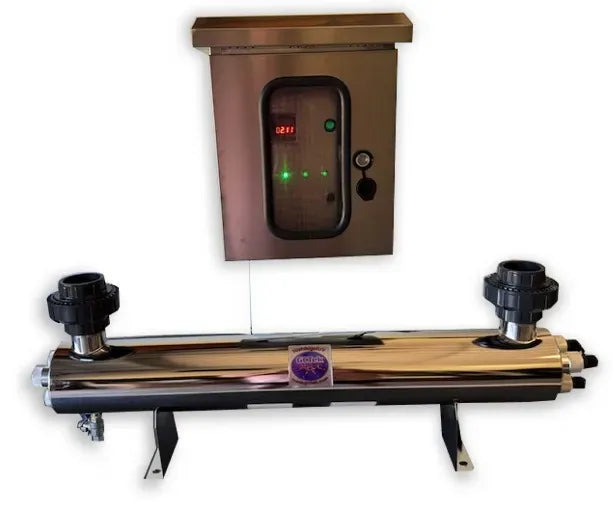

H165	3 × 55 W	9,900 gph	~10,000 gal	2"	$2,280.00

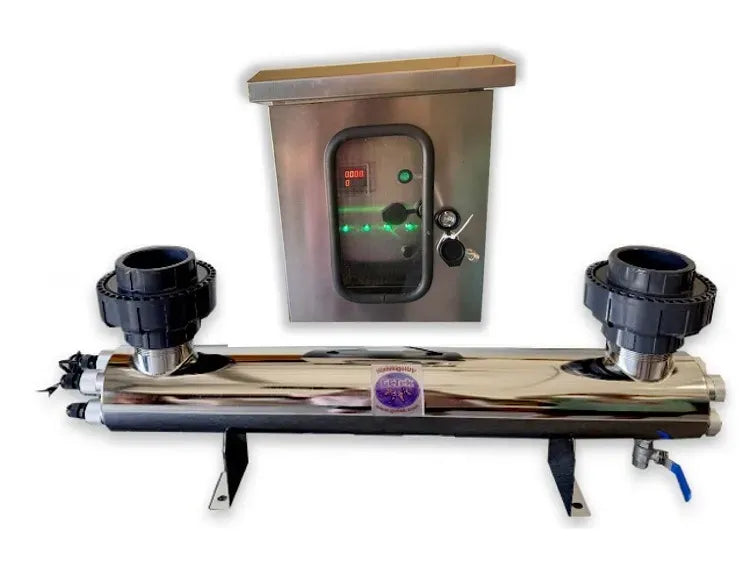

H220	4 × 55 W	13,200 gph	~15,000 gal	3"	$2,595.00

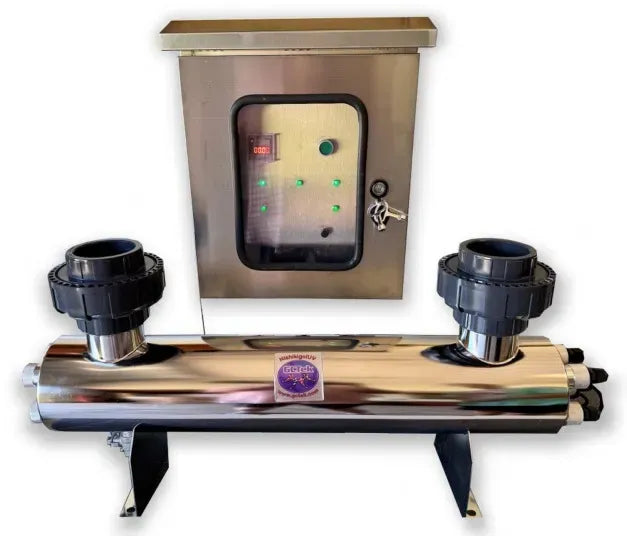

H400	5 × 80 W	24,000 gph	~25,000 gal	3"	$3,495.00

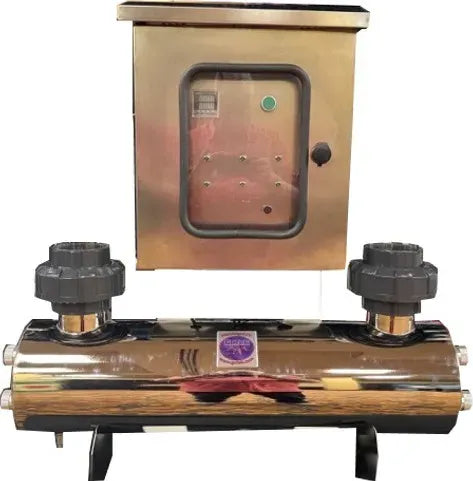

H480	6 × 80 W	28,800 gph	~35,000 gal	3"	$5,279.95

Size by flow, not just gallons. A UV only sterilizes water that passes it slowly enough — match the unit's max gph to your pump, then check the pond guide. For stocked koi ponds we like ~20 W per 1,000 gal and about one turnover per hour; water gardens get by on ~10 W per 1,000 gal. The H80 is now standard on KoiKeeper and PondKeeper systems; the HD160 on PLUS and PLUS PRO. H-series units are in stock at GC Tek and ship promptly.

Vertical NishikigoiUV Zapp Pure single-lamp UV WattMizer systems All GC Tek

GC Tek
Grand Champion Technologies · Chandler, Oklahoma · pond filtration built in the USA

Mystic Koi & Water Gardens — authorized GC Tek dealer, Upland, California.
Questions on sizing? Call the shop and talk to someone who runs these filters.
