Niji-no-Taki RDF + Bakki Shower Filtration System
The complete koi pond filter — drum + bakki shower + UV
Niji-no-Taki integrates mechanical, biological and UV filtration into one stainless-steel koi pond filtration system. Pond water is pumped in, passes through a 75-micron rotary drum (RDF) screen, under the UV, then trickles down through ceramic bakki media and returns crystal-clear over a quiet spillway — up to 10,000 GPH for ponds to about 6,000 gallons with heavy feeding.
Mechanical — rotary drum
A 75-micron rotary drum (RDF) screen pulls solids out before they break down; a timer runs the wash cycle — no sensors to fail.
Biological — bakki shower
3- or 4-layer bakki shower with high-surface-area ceramic media for powerful, oxygen-rich biological filtration.
Built-in UV
UV in a stainless chamber clears green water and keeps biofilm off the drum screen and media.
Efficient & easy
Runs under 5 amps and uses under ½ gal per 30-second clean cycle. One pipe from the pond, one waste line out.
Specifications
| Max flow | 10,000 GPH |
| Rated pond | up to ~6,000 gal |
| Footprint | 40"L × 24"W × 68"H |
| Drum screen | 75-micron mesh |
| UV | built-in (2 lamps) |
| Power draw | under 5 amps |
| Wash cycle | <½ gal / 30 sec |
| Construction | stainless steel |
What's included

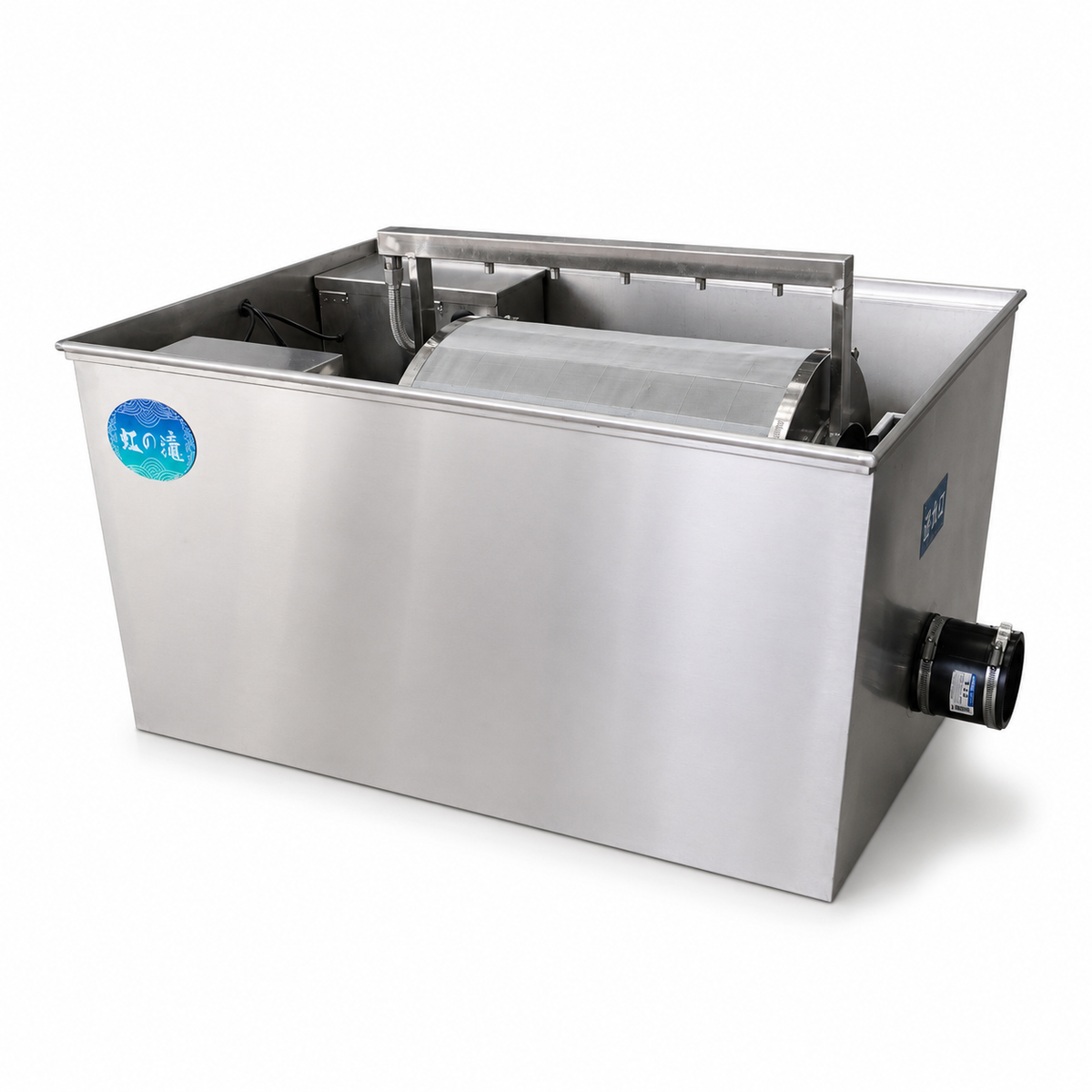

The drum unit includes the drum with screen, rotary gear motor, spray water pump, two UV lights and the control box — paired with your chosen 3- or 4-layer bakki shower. Add a full media load and your delivery is free.
Niji-no-Taki — living water by Nijikawa
Mechanical, biological and UV filtration in one stainless system. Sold and serviced by Mystic Koi, an authorized Nijikawa dealer.
